Belt Drive Turntable with USB, Bluetooth, Audio Technica MM Cartridge
- High-precision ATN-3600L cartridge with bonded stylus tip offers superior audio quality. Universal detachable headshell enables easy cartridge changes.
- Anti-skate and counterweight adjustments ensure compatibility with any cartridge, keeping the stylus centered in the groove without harming records.
- Pair the HQKZ-006 with Bluetooth speakers/headphones for a wire-free experience, no need for expensive phono pre-amps and receivers.
- Digitize vinyl audio by connecting turntable to computer via USB. Use Audacity to encode your records into MP3s for easy storage and playback on computer, smartphone, or tablet (software not included).
- The HQKZ-006 has a built-in phono pre-amp for compatibility with any stereo system, allowing use with or without a separate pre-amplifier.
- The aluminum tonearm is made of aircraft-grade aluminum, offering high rigidity and low friction bearings for precise tracking of record grooves.
Place your order before 4:00pm and we will ship it out within today.
Without code to receive an extra $40 off your order today.
Audio Keeper® HQKZ-006 Belt Driven Turntable
A versatile and high-quality turntable combines modern technology and delivers a classic vinyl listening experience.
Removable Headshell with High-precision Audio-Technica ATN-3600L Cartridge.
The pre-installed Audio-Technica ATN-3600L cartridge features a bonded round shank stylus tip that precisely tracks the contours of each record groove. Its specially designed-cantilever and armature effectively dampen unwanted resonances for a pure, transparent sound. The cartridge is attached to a standard headshell and can be easily installed or removed for upgrade or replacement. Its high-performance design delivers expansive soundstages, accurate timbres, and tight bass response to do justice to any genre in your collection.
Innovative Belt Drive System.
The HQKZ-006's belt-driven mechanism eliminates any possibility of vibration transfer from the motor that can degrade sound quality. The belt smoothly and silently rotates the die-cast aluminum platter at a constant 33 1/3 or 45 RPM for accurate playback of all your records. An electronic sensor constantly monitors and adjusts motor speed to prevent fluctuations that could negatively impact sound. With the HQKZ-006's innovative belt drive system, you can lose yourself in the rich textures, tones, and layers of your favorite records as the artists intended.
Aircraft-grade Aluminum Tonearm.
The straight aluminum tonearm is constructed of a single piece of aircraft-grade aluminum for maximum rigidity. Its lightweight design combined with low friction bearings allows the tone arm to track even the subtlest grooves in a record with ease. The tonearm pivot and bearing assembly are precision machined to tight tolerances, keeping wow and flutter to an absolute minimum. This ensures that each instrument and vocal comes through clearly, preserving all the nuances intended by the artist in the recording studio.
Convenient Speed Selection and Start/Stop Knobs.
The HQKZ-006 turntable features a convenient knob on the plinth to select between 33 1/3 RPM and 45 RPM playback speeds. This allows users to enjoy their entire record collection, from classic rock and jazz albums meant for 33 1/3 RPM playback all the way to modern pop and rock singles designed for 45 RPM. The computer-controlled belt-drive motor ensures accurate rotational speed at both 33 1/3 and 45 RPM to maintain optimal audio quality and avoid unwanted changes in pitch that could distort the music.
Premium Full-size Aluminum Platter.
Stability meets performance. With minimized wow and flutter, the HQKZ-006 promises an audio experience that's nothing short of perfection. The HQKZ-006 aluminum platter features a precision-machined surface for true tracking at all speeds. Together with the HQKZ-006's low-resonance tonearm, the aluminum platter hits the mark in tonal accuracy and dynamic expression across all genres of music.
Tonearm Adjustability.
With Anti-Skate, Anti-Tracking, and Weight Adjustments, you can achieve balanced and accurate sound reproduction tailored to your preference of cartridge. Anti-skate counteracts the inward pull of the record grooves on the stylus to maintain constant tracking force throughout each revolution. Anti-tracking compensates for tendencies of the tonearm to push inward or pull outward from radial tracking due to mechanical variations. Weighing the tonearm precisely establishes the optimum downward force for balanced playback without undue tracking pressure that could damage records or styli. Together, fine-tuning these parameters through a process of careful listening tests personalizes the sound by compensating for individual system and listener variables.
High-quality RCA Outputs.
The HQKZ-006 features high-quality RCA outputs that allow connection to any standard phono input on a stereo receiver, integrated amp, or other audio equipment. This provides seamless integration between the turntable and your existing audio system for rich analog sound. Housed within the HQKZ-006 is a low-noise, high-fidelity phono pre-amplifier that boosts and conditions the phono-level signal from the cartridge to line level for receivers without a phono preamp.
Bluetooth Connectivity.
In addition to traditional wired playback, the HQKZ-006 includes modern Bluetooth connectivity for wireless streaming. Simply pair the turntable to a Bluetooth receiver, headphones, or bluetooth speaker to listen from anywhere in the room! This allows the warmth of records to be enjoyed in a convenient, versatile manner while maintaining the authentic analog playback that vinyl enthusiasts love.
Removable Dust Cover.
Keep your turntable pristine. Shield it from dust and particles that can compromise sound quality. A built-in dust cover blocks airborne particles and dust that could otherwise settle on the turntable platter or tonearm. Regular accumulation of dust and debris can degrade audio performance over time by adding friction and resistance. The cover is easily lifted out of the way for play sessions and folds back down to protect the turntable when not spinning records. Proper use of the dust cover helps maintain optimal sound quality and extend the functional life of your turntable.
Specially Engineered Isolation Feet.
The HQKZ-006 turntable utilizes four specially engineered isolation feet to decouple the turntable from external vibrations and resonance. At their point of contact with the turntable sub-chassis or support surface, the feet of the HQKZ-006 prevent low-frequency rumble and structural vibrations from degrading the audio signal or muddying the sonic presentation. Above the isolation feet, a heavy MDF plinth further insulates the turntable from airborne vibrations. Whether enjoying vinyl or digital high-resolution files, the HQKZ-006's vibration control allows you to relax in the knowledge that only the recording itself is being heard.
Specifications & Downloads
Turntable Specifications
Motor Specs
- Drive Type: Belt Drive
- Nominal Speeds: 33-1/3 RPM, 45 RPM
- Speed Variance: ±1.5%
- Wow and Flutter: ≤0.15%
- Signal-to-noise Ratio: 55dB
Tonearm
- Type: Static Balance
- Tonearm Effective Length: 8.6"
- Overhang: 0.73"
- Headshell Terminal: Ø1.2mm 4-pin terminal
Digital Output
- Bluetooth Version: 5.3
- Supported Bluetooth Codecs: Qualcomm aptX
- USB Output Samples Rates: 44.1 and 48 kHz
General
- Power Consumption: 6W
- AC Adaptor: 12V/500mA AC-DC
- Dimensions: (lid closed): 415x345x130mm; (lid open): 415x405x390mm; (without lid): 415x345x53mm
- Weight: 13.67 lbs.
ATN-3600L Cartridge
- Type: Moving Magnet
- Output Voltage: 2.5 mV (@1 kHz, 5cm/sec.)
- Channel Balance: <2.5dB
- Channel Separation: >18dB
- Recommended Load Resistance: 47kΩ
- Mass: 5.7g
- Recommended Vertical Tracking Force: 3.0±0.5g (3.0g standard)
Product Details
Brand: Audio Keeper
Model: HQKZ-006
Unit of Measure: Each
Weight: 6.2kg
User Guide
Customer Experience Sharing

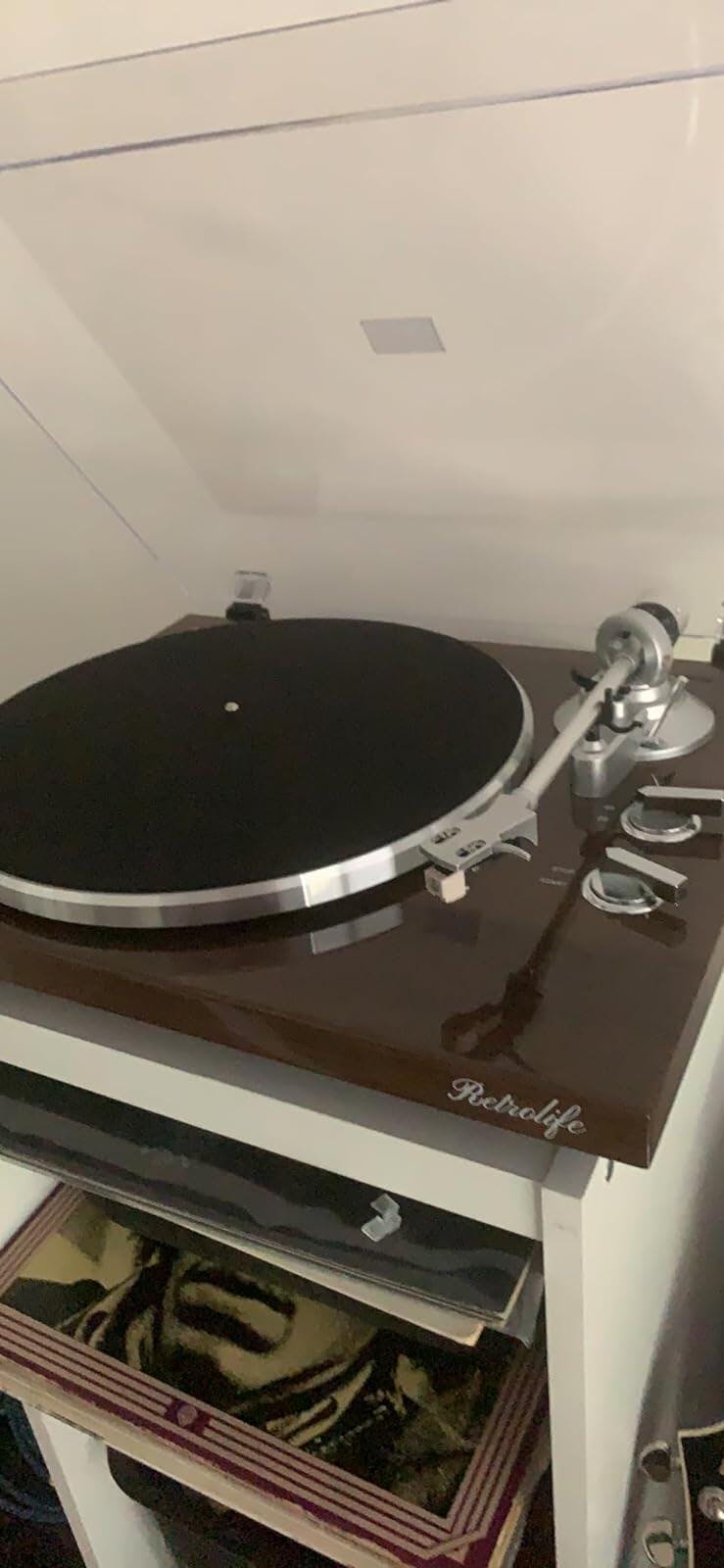

"This turntable blew my expectations out of the water. I love it so much, it's replacing my previous 2nd setup."
I Loved:
🎶 It's belt driven & includes a switch to change between 33 & 45.
🎶 Aluminum platter that was very steady. No wow or flutter, which was very impressive.
🎶 Tone arm seems solid, "problem" records did not skip like my previous starter setup.
🎶 It’s got a counterweight & anti-skate, which is more in the "intermediate turntable" category.
🎶 It’s beautiful! It looks WAY more expensive than it actually is.
🎶 Great vibration control, I had no needle skipping issues walking close while playing.
Sound Quality:
🎧 Only tested it with Bluetooth, since the place I am using it doesn't have room for speakers, but does have a built-in pre-amp if you have speakers.
🎧 Bluetooth was quick & easy to set up & does stay paired even when turning on & off to make it easy to play.
🎧 The speaker quality did impact sound quality a lot, so invest in good speakers.
🎧 Audio Keeper had less dynamic range than the Pro-Ject when compared back to back, for the price point (Pro-Ject with upgrades is 5x more expensive) a casual user might not tell a major difference between the two.
Things To Note:
📍 I did upgrade the mat from felt to cork to eliminate static since it's a metal platter.
📍 Uses an AT3600L stylus that can’t be upgraded, though this is the same throughout most starter turntables.
📍 This stylus also uses a 3.0-gram tracking force which is higher than expensive cartridges.
📍 Using Bluetooth, you can slightly hear the actual needle noise, but this is a common Bluetooth issue.
FAQs
Does this turntable come with RCA cables?
Yes, the turntable does come with RCA cables included in the package. These cables are essential for connecting your turntable to external audio devices such as amplifiers, speakers, or receivers.
How is the initial setup on the counterweight?
Setting up the counterweight on the HQKZ-006 is straightforward. Here's a simple guide to help you through the process:
- Balancing the Tonearm:
Start by ensuring that the tonearm is balanced. This means it should neither rise nor fall when placed in a horizontal position. - Adjusting the Tracking Force:
Rotate the counterweight at the back of the tonearm until the arm floats horizontally. This indicates that the tracking force is zero. - Setting the Recommended Tracking Force:
Refer to the specifications provided with your cartridge or turntable manual to determine the recommended tracking force. Once identified, set the tracking force by turning the counterweight knob. Usually, this involves increasing the force until the desired level is reached. - Fine-Tuning:
After setting the tracking force, fine-tune the balance by slightly adjusting the counterweight as needed until the tonearm floats parallel to the record surface. - Test and Adjust:
Once everything is set up, test the playback by playing a record. If the sound quality is not satisfactory or if there are tracking issues, revisit the tracking force and adjust accordingly.
If you encounter any difficulties during the setup process or have further questions, feel free to reach out for assistance. We're here to help ensure you have the best listening experience with your HQKZ-006 turntable!
Can I be able to change needle or upgrade needle with headshell depend if it needed upgrade or if it worn out?
Yes, you can change or upgrade the needle (stylus) on the HQKZ-006 turntable if needed. The turntable typically comes with a removable headshell, which allows you to easily swap out the cartridge and stylus assembly.
What speeds does this have, just 33 & 45rpm?
Yes, the HQKZ-006 turntable supports two playback speeds: 33 1/3 and 45 revolutions per minute (rpm). These are the standard speeds for playing LP (long play) records and singles, respectively.
Will this connect with beats studio pro via bluetooth?
Yes, the HQKZ-006 turntable is equipped with Bluetooth connectivity, allowing you to wirelessly connect it to compatible devices such as the Beats Studio Pro headphones. You can enjoy the convenience of streaming your vinyl records directly to your Beats Studio Pro headphones without the need for any additional cables.
What is the plinth of the turntable made of?
The plinth of the HQKZ-006 turntable is constructed from high-quality materials, typically a combination of MDF wood composite. This ensures stability and vibration resistance, providing a solid foundation for the turntable's components and contributing to optimal sound quality during playback.
Can you adjust the volume output when paired with Bluetooth headphones?
While the HQKZ-006 turntable itself doesn't support volume adjustment, you can control the volume output when paired with Bluetooth headphones directly through the headphone's volume controls. Once paired, simply use the volume buttons on your Bluetooth headphones to adjust the audio level to your preference.
Are there replacement belts available?
Yes, replacement belts for the HQKZ-006 turntable are available. The belt drive system is an essential component of the turntable, and if the belt becomes worn out or damaged over time, it's important to replace it to ensure optimal performance. Buy Belts Link
What is the size of the belt?
The size of the belt on turntable HQKZ-006 is 192-195*5.5*0.6mm.
Does the turntable stop spinning at the end of a record?
Yes, the HQKZ-006 turntable features an auto-stop function that stops the platter from spinning at the end of a record. This convenient feature helps to prevent unnecessary wear on both the turntable and your records by automatically stopping the rotation once the stylus reaches the run-out groove at the end of the record.
This product is rated 5.0 of 5.0 stars.
It has received 11 reviews.
