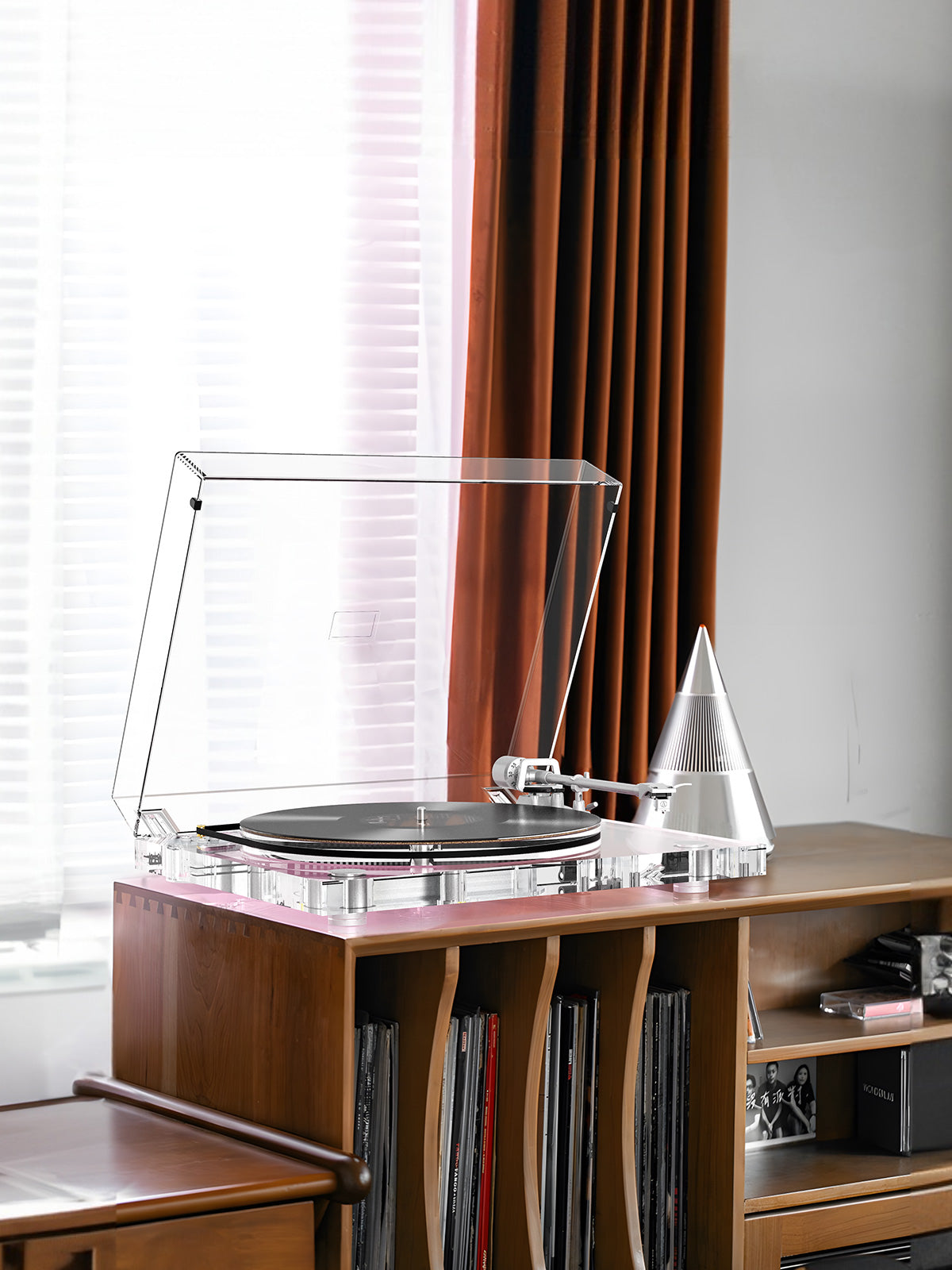

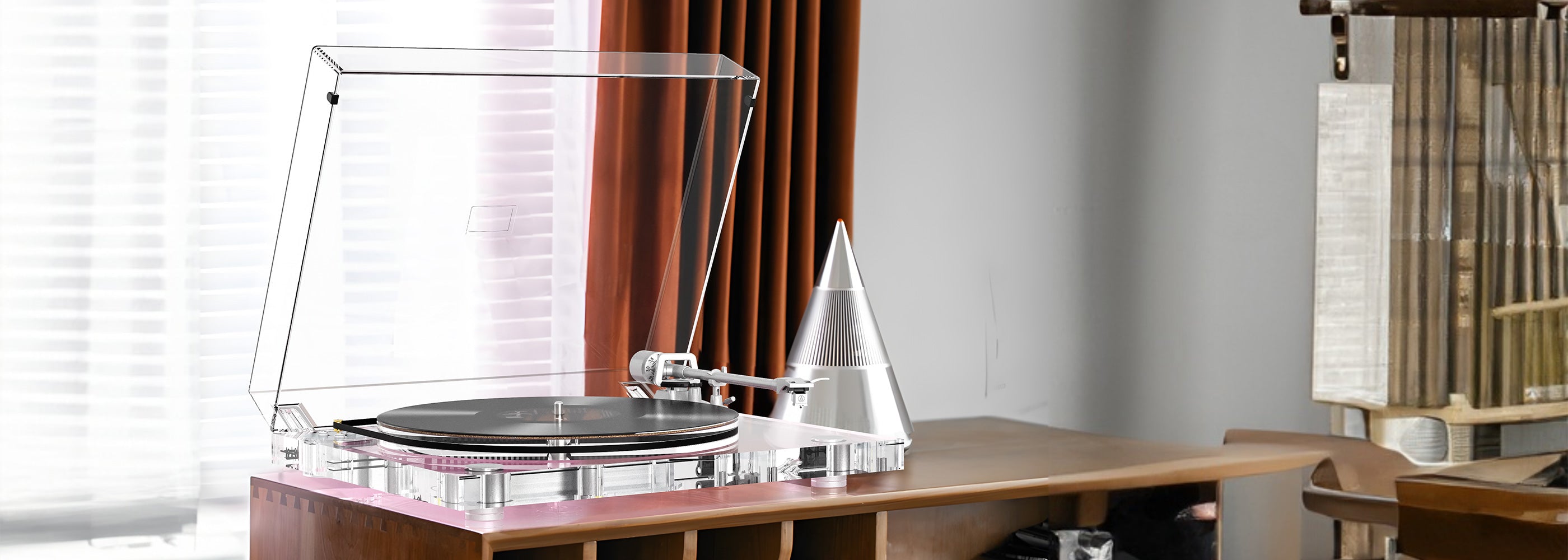

Genesis-V2 Clear Professional Turntable – Hi-Fi Vinyl Player with Bluetooth

• Professional Turntable 2-SPEED Plays 33 & 45 RPM records 45 rpm spindle adaptor supplied
• Clear Acrylic Body & Platter
• AUDIO TECHNICA AT3600 CARTRIDGE
• BELT-DRIVEN full-size platter with felt anti-slip mat
• Aluminum-alloy L-shaped Tone Arm with Oval Stylus
• Cue Lever Counter balance for tonearm weight adjustment
• Turntable Speed Variable Pitch Control
• Bluetooth Transmit & Receive
• RCA Line-out (L + R)
• Stereo Sound 2 x 5W RMS Sound Output: 25W p.m.p.o.
• 220V AC Mains powered
• Main Unit Size (W) 420mm (D) 340mm (approx)


• 2.5mV Output Voltage
  This refers to the electrical signal produced by the cartridge when it vibrates in response to the grooves on a vinyl record. A higher output voltage typically means less amplification is needed from the phono preamp.
• 20Hz-20kHz Frequency Response
  This specifies the range of frequencies that the cartridge can accurately reproduce. A wider frequency response generally results in a more natural and detailed sound.
• 2.0dB Channel Balance
  This indicates how well the left and right channels of the cartridge match in terms of output level. A lower number means better channel balance, which is crucial for stereo imaging.
• 1kHz/10kHz: ＞18dB Channel Separation
  This measures the isolation between the left and right channels at specific frequencies. Higher numbers indicate better channel separation, reducing crosstalk between channels.
• 3.5±0.5g Recommended Tracking Force
  Tracking force refers to the downward pressure applied by the stylus onto the record. The specified range indicates the optimal tracking force for this cartridge to ensure proper contact with the record groove.
• 1kHz/10kHz: 20/15dB Channel Separation
  This measures the isolation between the left and right channels at specific frequencies. Higher numbers indicate better channel separation, reducing crosstalk between channels.
• 2.5 - 3.5 g Tracking Force
  Tracking force refers to the downward pressure applied by the stylus onto the record. The specified range indicates the optimal tracking force for this cartridge to ensure proper contact with the record groove.
• Highly Polished and Shaped .0006 inch Conical Diamond
  This describes the stylus, which is the part of the cartridge that actually reads the grooves on the record. "Conical" refers to the shape of the diamond tip, and ".0006 inch" is its size. A highly polished and shaped diamond stylus can improve tracking accuracy and reduce wear on the record.
• To remove old stylus (needle), hold the cartridge in one hand, grasp the plastic stylus housing with thumb and forefinger, and pull away from the cartridge. The stylus assembly comes away at a slight angle, as indicated by the arrow.

  To install replacement stylus, insert the new stylus assembly into the cartridge at a slight angle, so the hook at the end of the stylus fits into the slot in the cartridge body. The stylus assembly should click into place when fully seated on the cartridge. The stylus must be fully seated on the body for proper operation.
